When Nothing Else Works, This Does

BioWavePENS

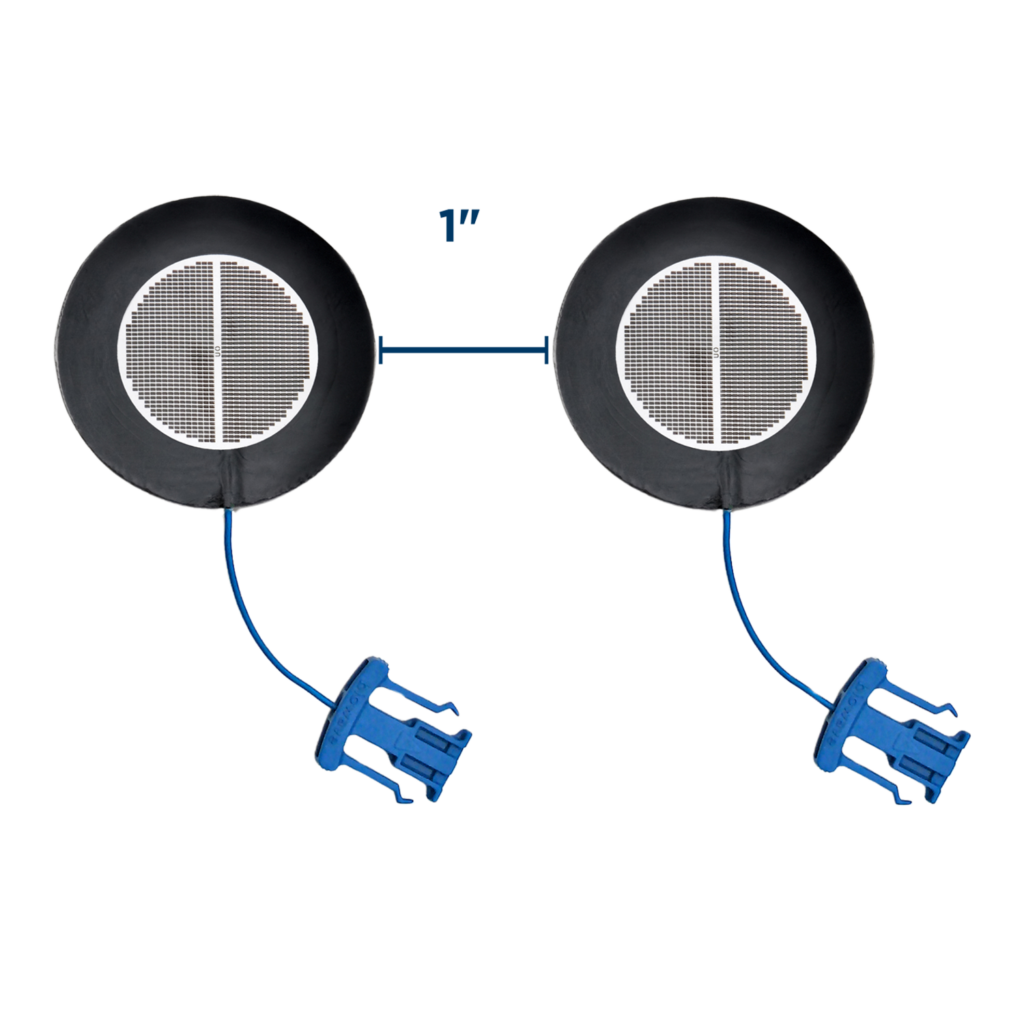

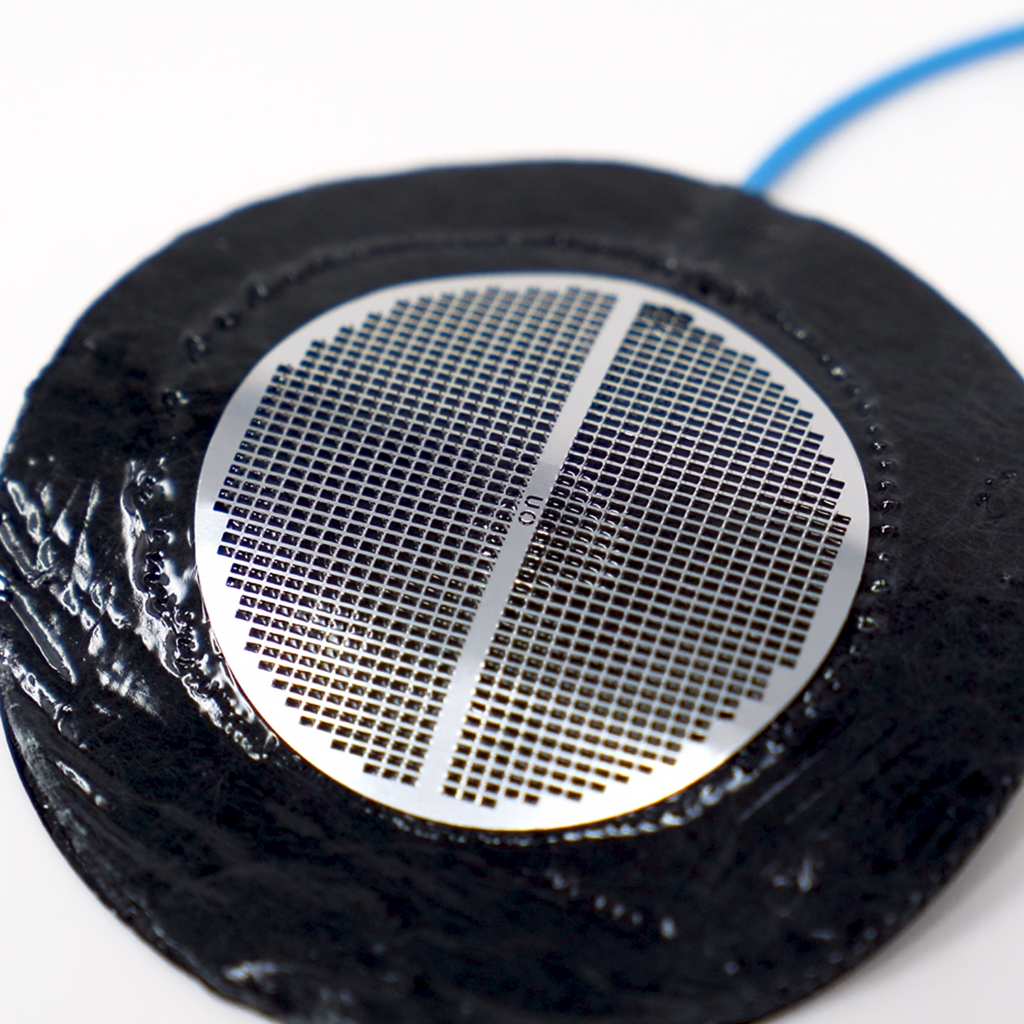

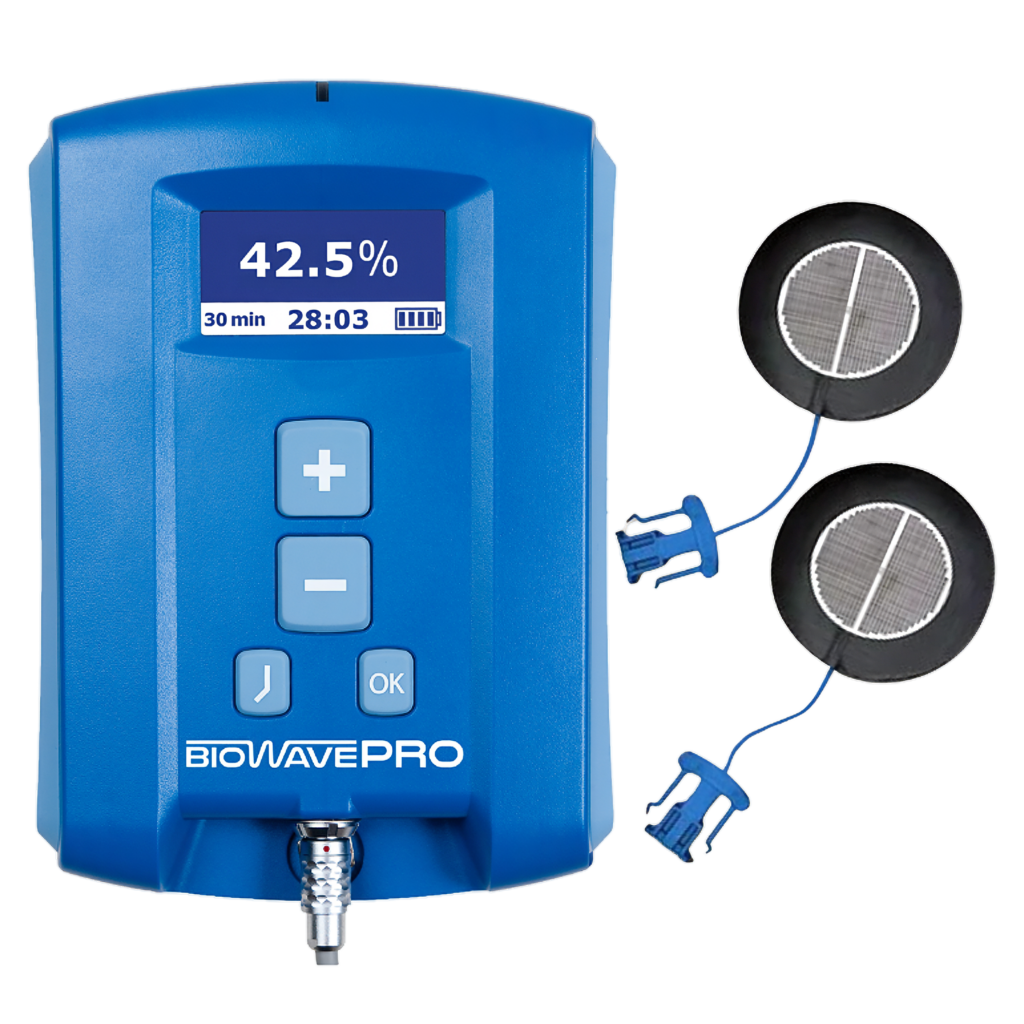

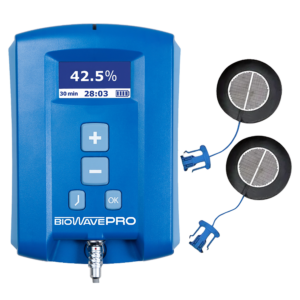

BioWavePENS is an advanced in-office procedure designed for patients with severe pain (VAS 6–9) who want to avoid opioids, injections or surgery. Performed under a doctor’s supervision, this patented treatment uses a BioWavePRO device to deliver therapeutic electrical stimulation through two high-density micro-needle arrays to interrupt the transmission of pain signals at the source. The microneedle arrays, which are comprised of 1,014 precisely placed needles, bypass the impedance of skin, providing a direct conductive pathway into deep tissue.

BioWavePENS targets pain at its source providing safe, drug-free, immediate, long lasting relief when other therapies have failed.

Features

  • Ideal first-line treatment before pursuing costly diagnostics or imaging
  • Works alongside injection therapy or physical rehabilitation
  • A proven alternative to surgery for severe, chronic and neuropathic pain
  • Provides effective relief without opioids or systemic drugs
  • A great option for patients who are needle or injection averse
  • Offers hope when traditional treatments fall short

Benefits

  • up to 72 hours of continuous pain relief following a 30-minute treatment 4
  • No downtime: patients can return to activities faster
  • 94% of patients reported improved quality of life2
  • 54% reduced or eliminated pain medication use2
  • Blocks pain, improves function, enhances recovery
  • No known side effects
  • Comfortable treatments with high patient compliance
  • Supported by rigorous clinical evidence
  • Enhances pain relief for patients undergoing injections or rehab programs

Quicklinks

Learn More BioWavePENS Quick Reference Guide

BioWavePENS Support

Below you’ll find dedicated support for BioWavePENS, including setup instructions, usage guidance, and helpful resources to support you every step of the way.

Getting Started

Quick BioWavePENS Reference Guide Download

DIRECTIONS FOR USE (IN-CLINIC ONLY)

  1. Plug in the AC charger straight down into the charging port on the BioWavePRO unit to charge up the battery. Once fully charged, remove plug and proceed to step 2.
  2. Plug blue Electrode CONNECTORS into blue LEADWIRE CABLE.
  3. Connectors will click in place and stick out partway so you can easily pull them apart after treatment.
  4. Find your ELECTRODE PLACEMENT PHOTO for your specific pain condition in this Quick Reference Guide.
  5. Mark skin with Sharpie marker over center of each pain site.
  6. Clean skin with alcohol prep.

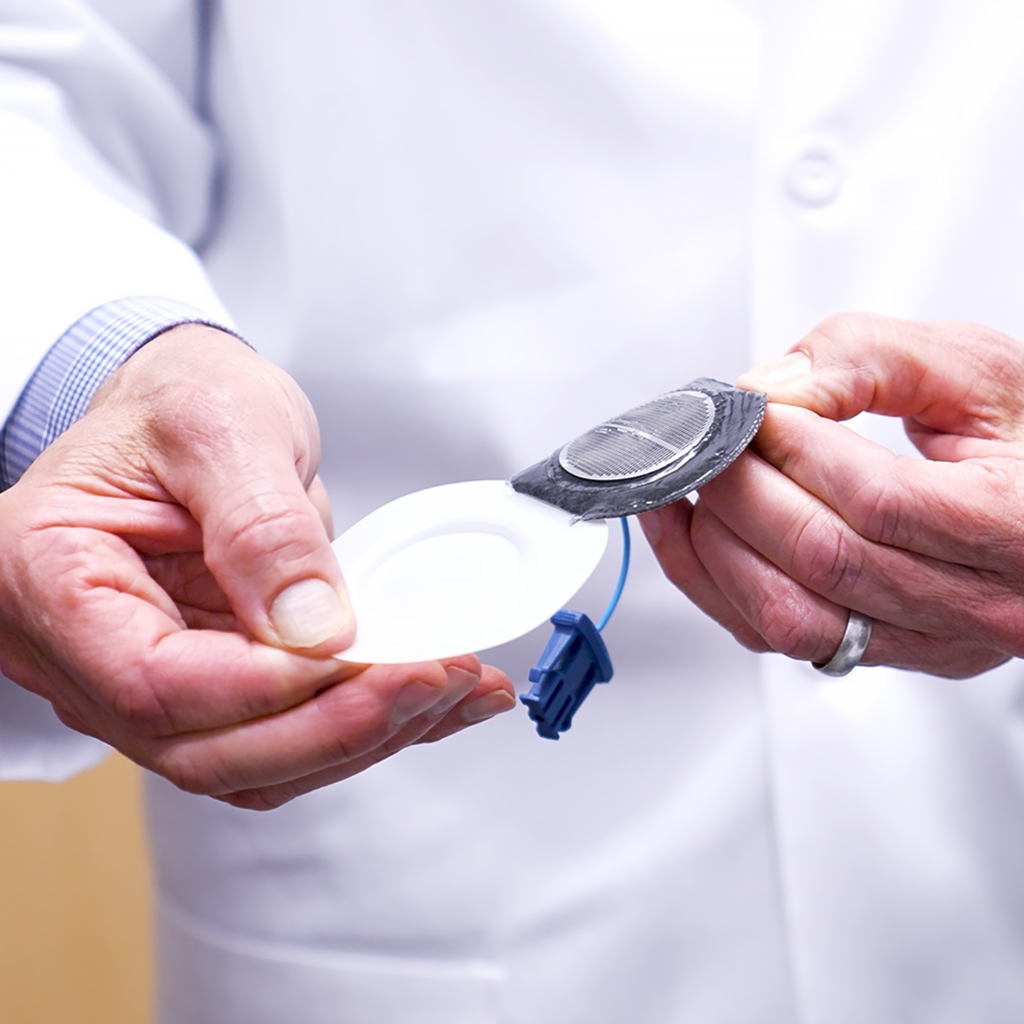

  7. Gently peel electrode from protective cup.
  8. Place electrode centered over Sharpie mark.
  9. Insert percutaneous electrodes through skin.
  10. Plug LEADWIRE CABLE into unit. On leadwire cable, align red dot on metal connector so it is facing up. Gently slide metal connector into device so it clicks in place.
  11. Press Power Button to turn unit on.

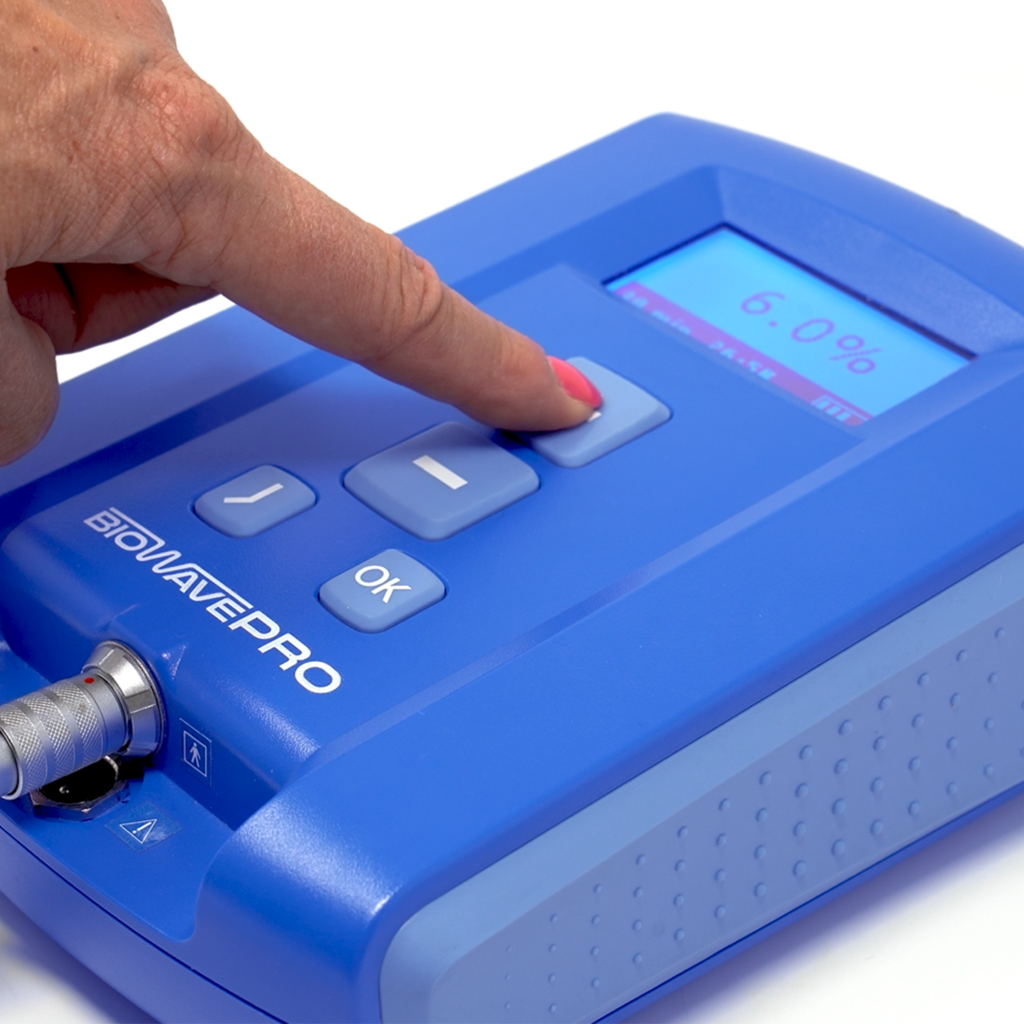

  12. User begins treatment by pressing the PLUS (+) button. Continue to press the PLUS (+) button throughout treatment to keep a strong but comfortable sensation. User always controls the intensity setting and their comfort level.
  13. During treatment, intensity level that you reach is about half the level you would have reached if you used non invasive electrodes.
  14. When countdown timer reaches 0:00 minutes, intensity automatically is reduced to zero. Press power button to turn unit off.
  15. Gently peel electrodes off of skin.
  16. Place needle side of electrodes together and dispose of in Sharps disposal.
  17. 1.5” diameter pink circle with 1014 dimple marks will appear at treatment site.
  18. 50% of patients have several tiny drops of blood present.
  19. Clean skin with an alcohol prep or with a sterile gauze pad – no dressing is necessary.
  20. Pink circle resolves typically within 24 hours.
