Electrode Placement
BioWavePRO electrode placements are different from conventional electrical stimulation. The mixing of the patented therapeutic signals occurs in a 3.5-inch hemisphere (the size of half of a grapefruit) beneath and surrounding each electrode, not along the surface of the skin between the electrodes.

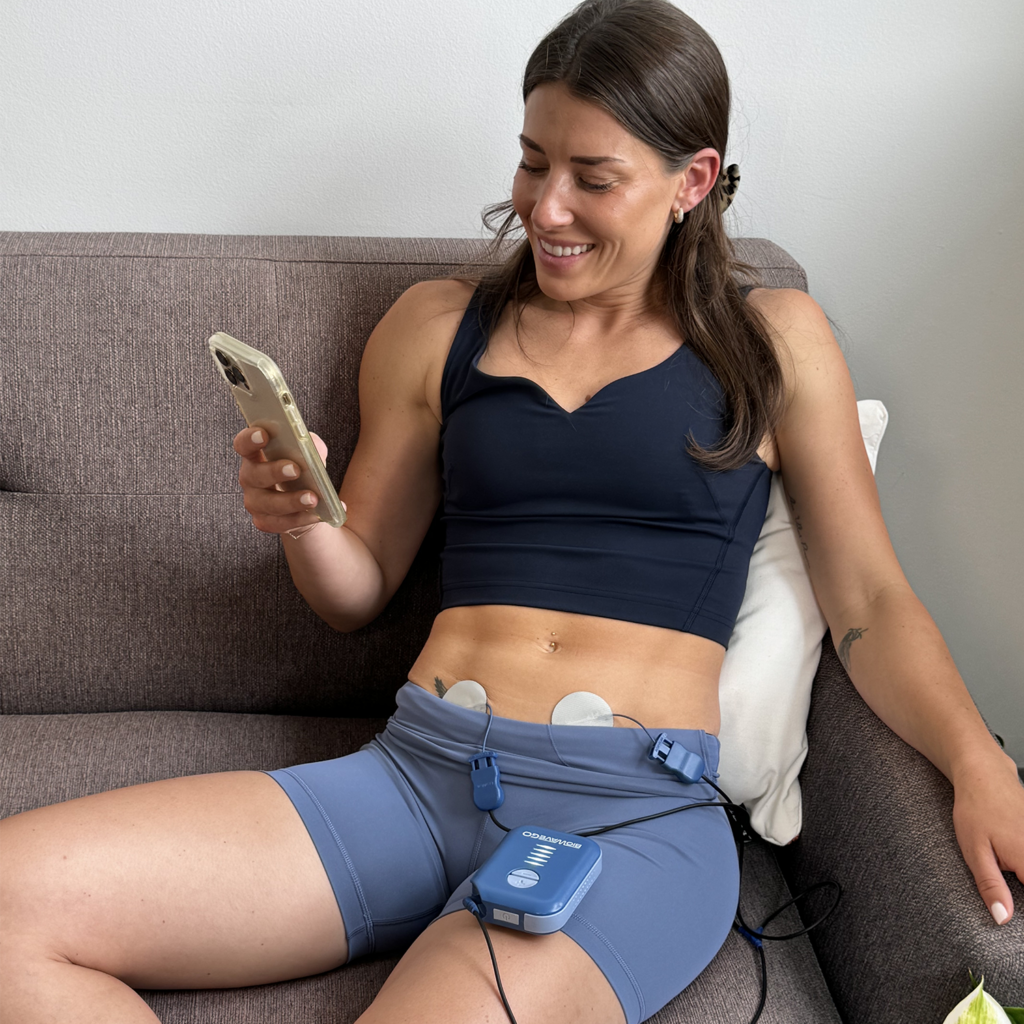

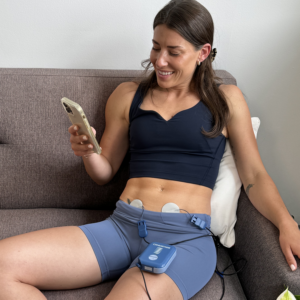

As a result, electrodes need to be placed directly over specific locations of pain, or one electrode over a single location of pain and the second over a comfortable location to receive stimulation – typically over a bony prominence near the treatment site.
Electrical signals can be focused to different parts of the body by pairing electrodes of different sizes with one another.

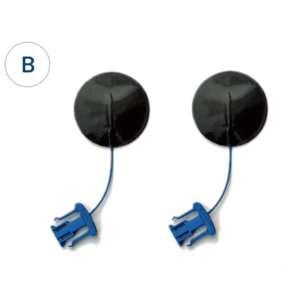

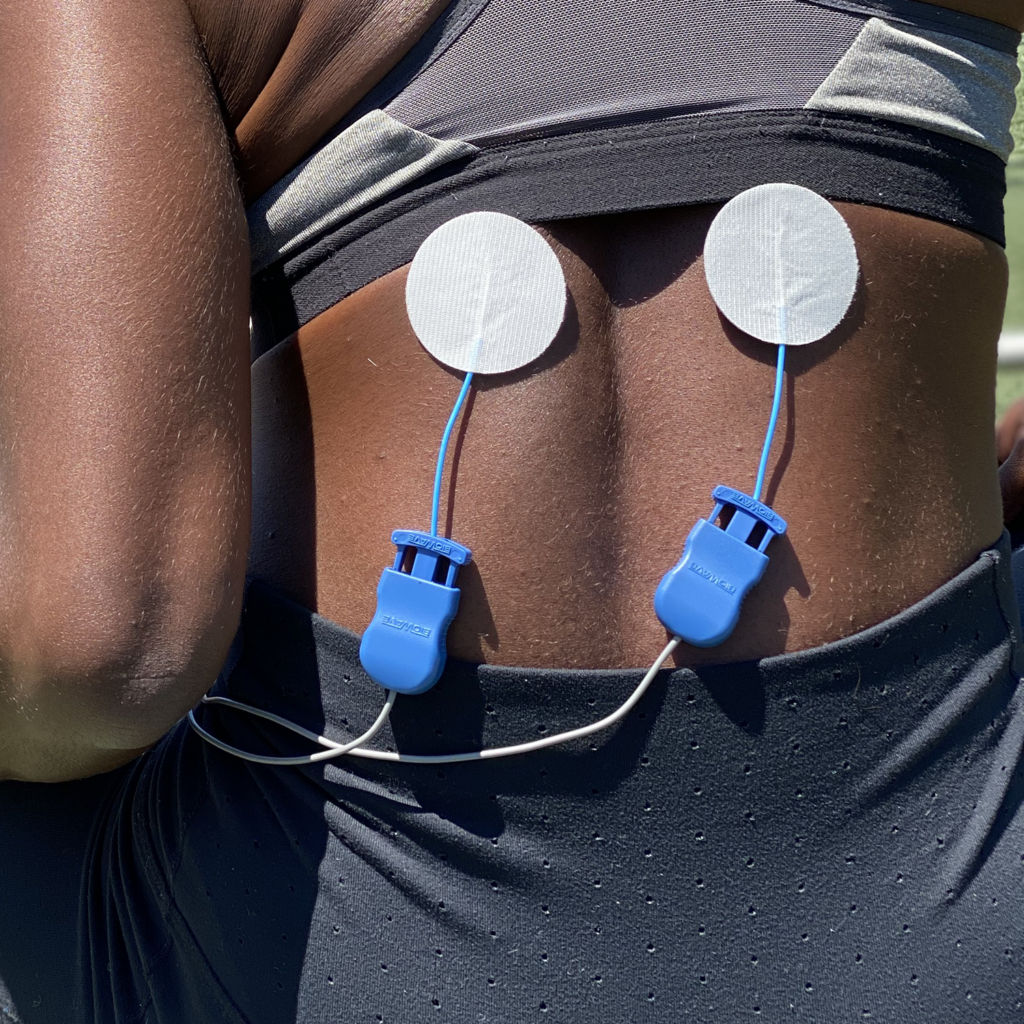

B-Set: Two Locations of Pain or one large area of pain. Two same size 2” diameter round Pain Site Electrodes.
- placed directly over 2 locations of pain; or
- over the origin or source of pain, and over the most painful location that is closest to the origin of pain (for example, for sciatica, one pad is placed over the spine (origin) and one pad is placed on the buttock (most painful location closest to origin); or
- one inch apart from one another to treat a large area of pain.

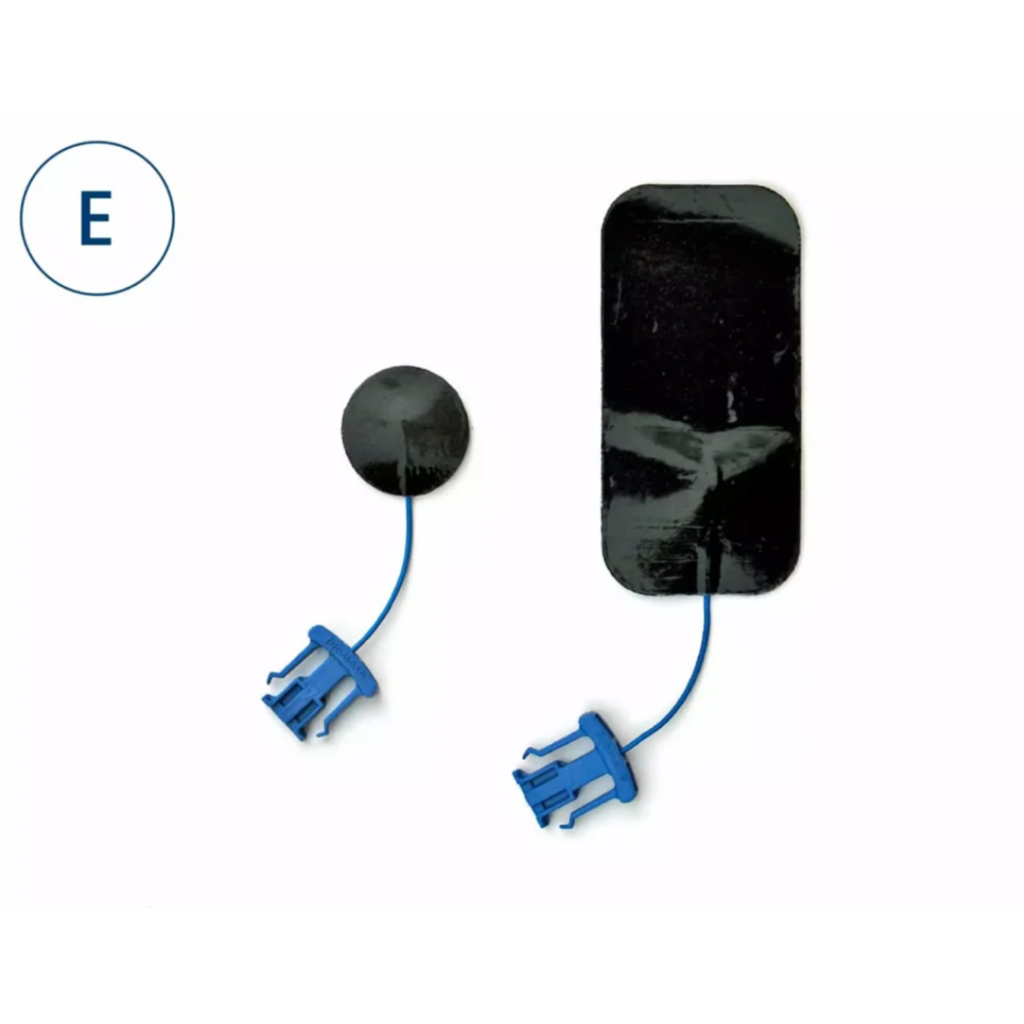

E-Set: Single Location of Pain on Extremities. One 1.375” diameter round Pain Site Electrode; One 2”x 4” rectangular Dispersive Electrode placed in a comfortable location (over a bony prominence).
How to Prescribe
To prescribe BioWave Percutaneous or Hydrogel Electrodes for your patients, connect with our sales team. We’ll help you select the right sets for each treatment plan and ensure fast, knowledgeable support every step of the way.
Contraindications
Understanding BioWave’s contraindications and warnings ensures safe and effective use. This section outlines when BioWave should not be used, where electrodes must not be placed, and important precautions for patients with specific medical conditions or implanted devices.
- DO NOT USE on patients with a cardiac pacemaker or defibrillator as the stimulator may interfere with its function.
- DO NOT USE any electrodes over the heart or across the thoracic volume. Electrodes can be applied to the back of the thorax and lateral aspect of the upper limb (i.e. below/down the shoulder).
- DO NOT PLACE the electrodes on the front or side of the neck.
- DO NOT PLACE electrodes on top of the head.
- DO NOT USE on patients prone to seizure (for example, epileptics).
- DO NOT PLACE electrodes and DO NOT USE the stimulator over open wounds, broken skin, rashy skin or sensitive skin areas (e.g. sunburned skin).
Warnings
Electrodes
- must never touch each other
- Minimum Spacing Between Electrodes = 1 inch
- Do NOT use electrodes if The metal portion of the wire is exposed; or
- Do NOT use electrodes if the gel has peeled apart from the black carbon surface
- Do NOT use electrodes if the surface of the hydrogel is worn down
Pregnancy
BioWave CAN BE USED on pregnant patients. Anecdotal evidence suggests BioWave may be helpful with back and hip pain in pregnant patients. However, PADS CANNOT BE PLACED over the belly of a pregnant patient. Patients should consult with their physician regarding use of BioWave during pregnancy & labor. See BioWave’s protocol for use during pregnancy.
Cancer
BioWave CAN BE USED on patients with cancer. Please consult with your physician prior to use.
BioWave MAY be used for the following:
- BioWave stimulators MAY BE USED on patients with implanted drug pumps, spinal cord stimulators, peripheral nerve stimulators or other implanted electrical stimulation devices. Implanted electrical stumilation devices should first be turned off remotely before using BioWave.
- Electrodes MAY BE PLACED on the back of the neck and bioccipitally on the back of the skull.
- BioWave electrodes MAY BE PLACED and BioWave stimulators MAY BE USED over scar tissue,
tattoos or any other intact skin area.
- BioWave stimulators MAY BE USED to treat over body locations that have implanted orthopedic
hardware made from metal or other materials including total joint replacements, pins, screws,
plates, rods, and anchors.
